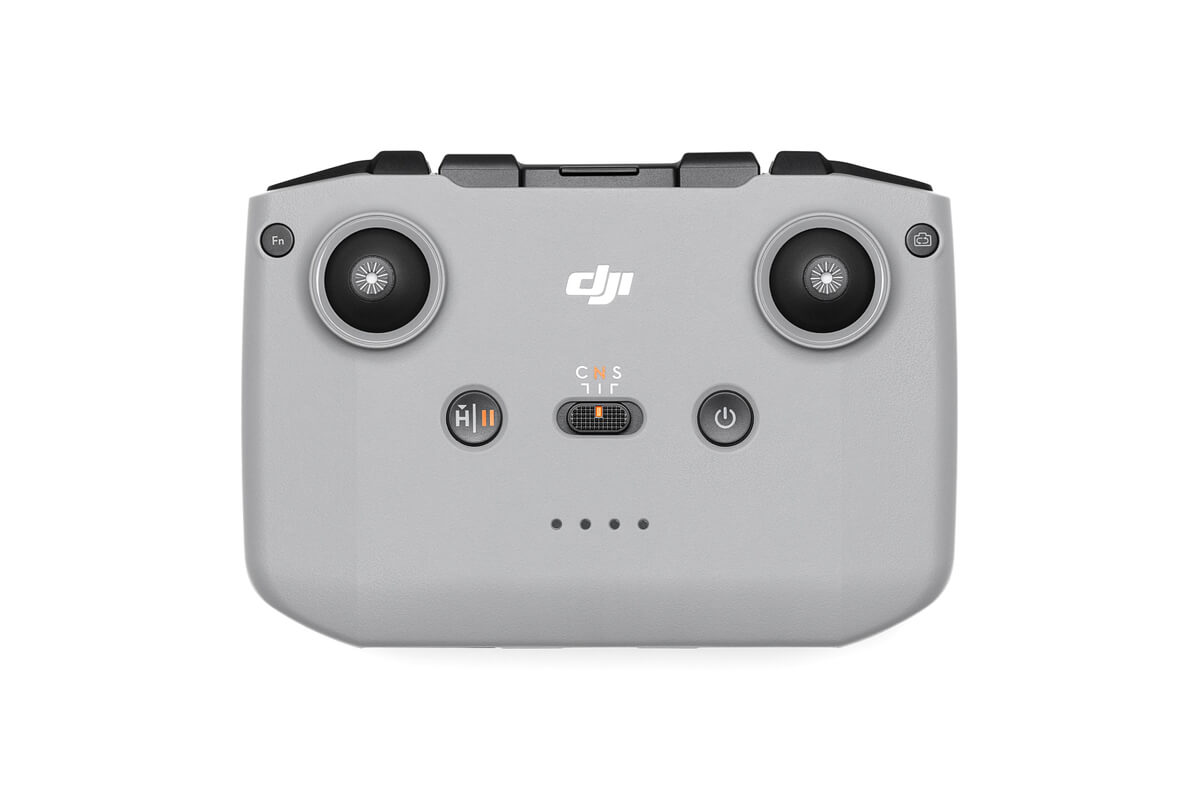

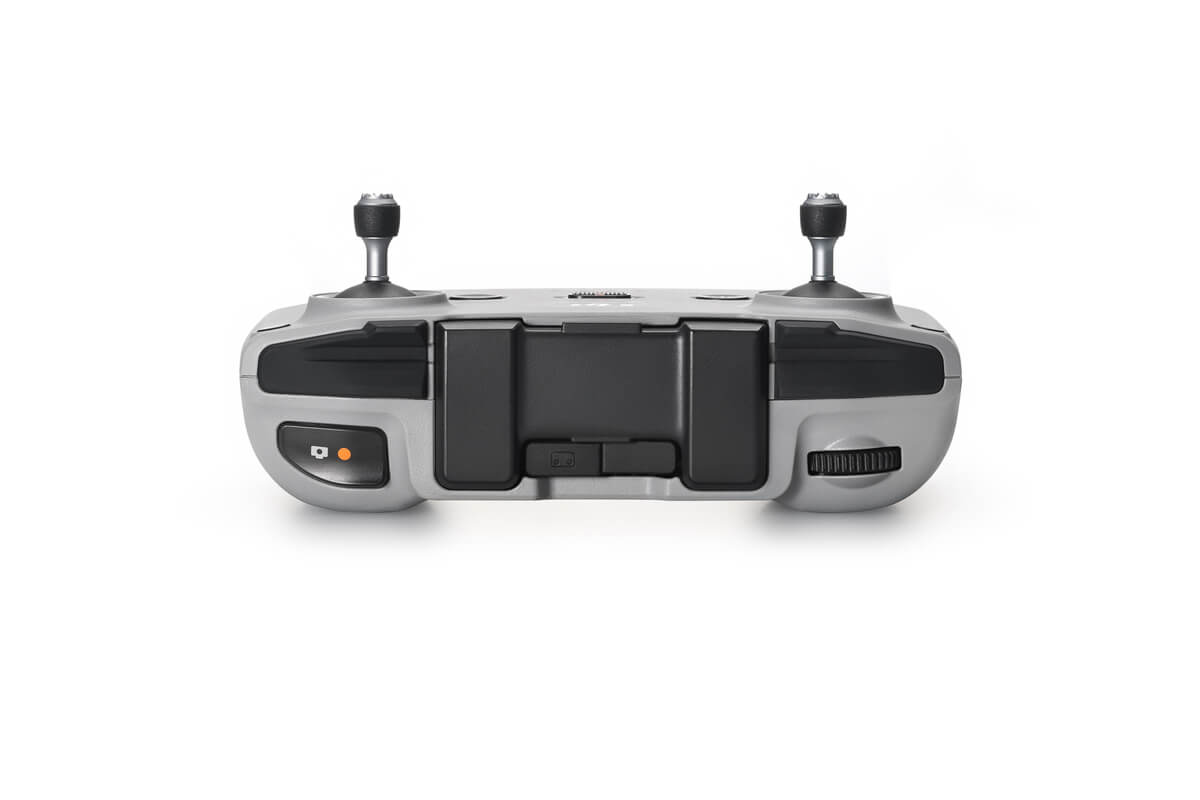

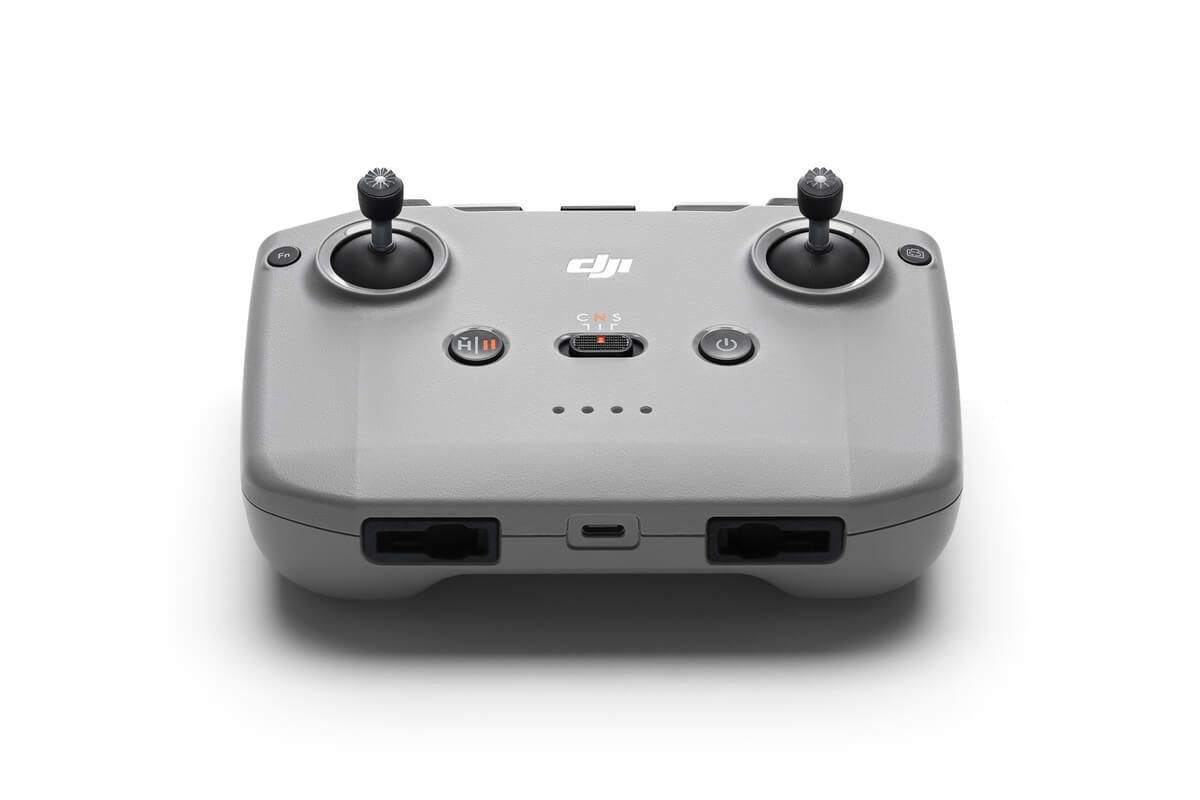

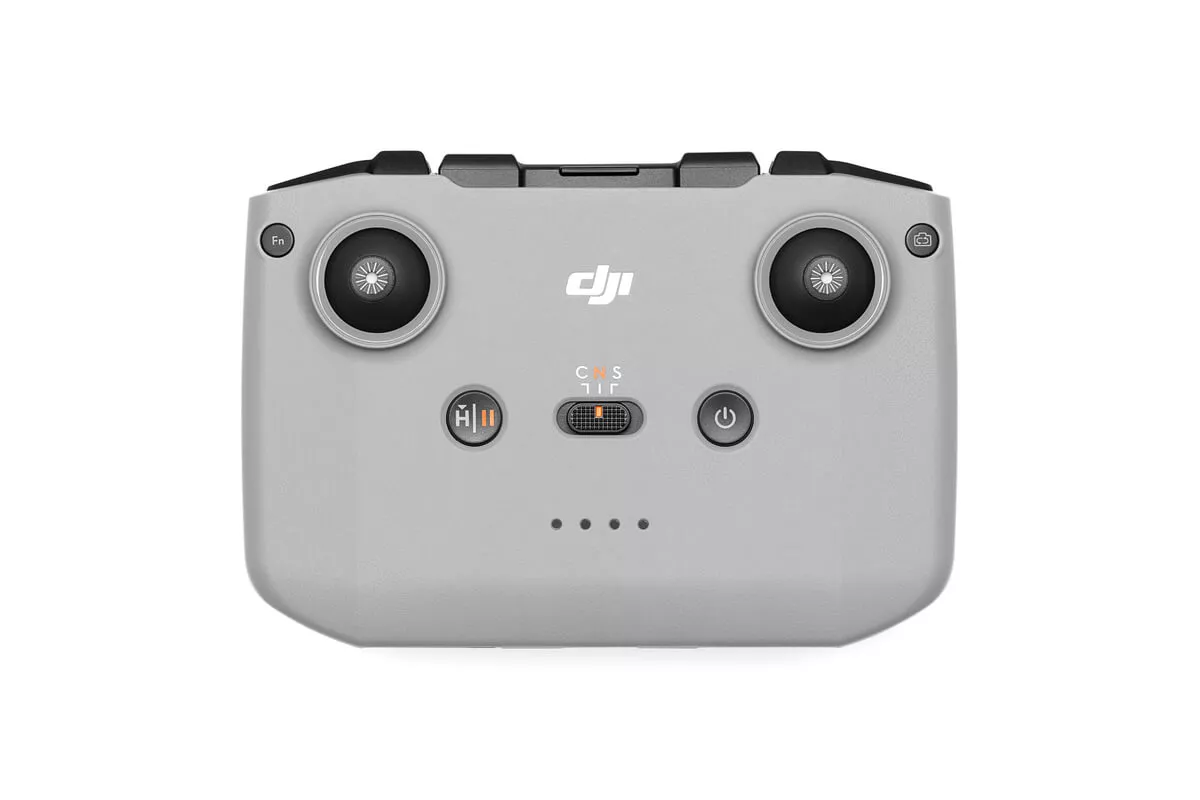

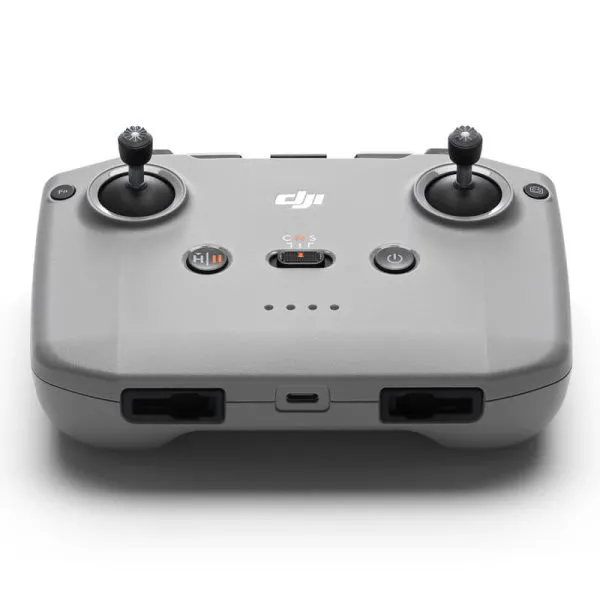

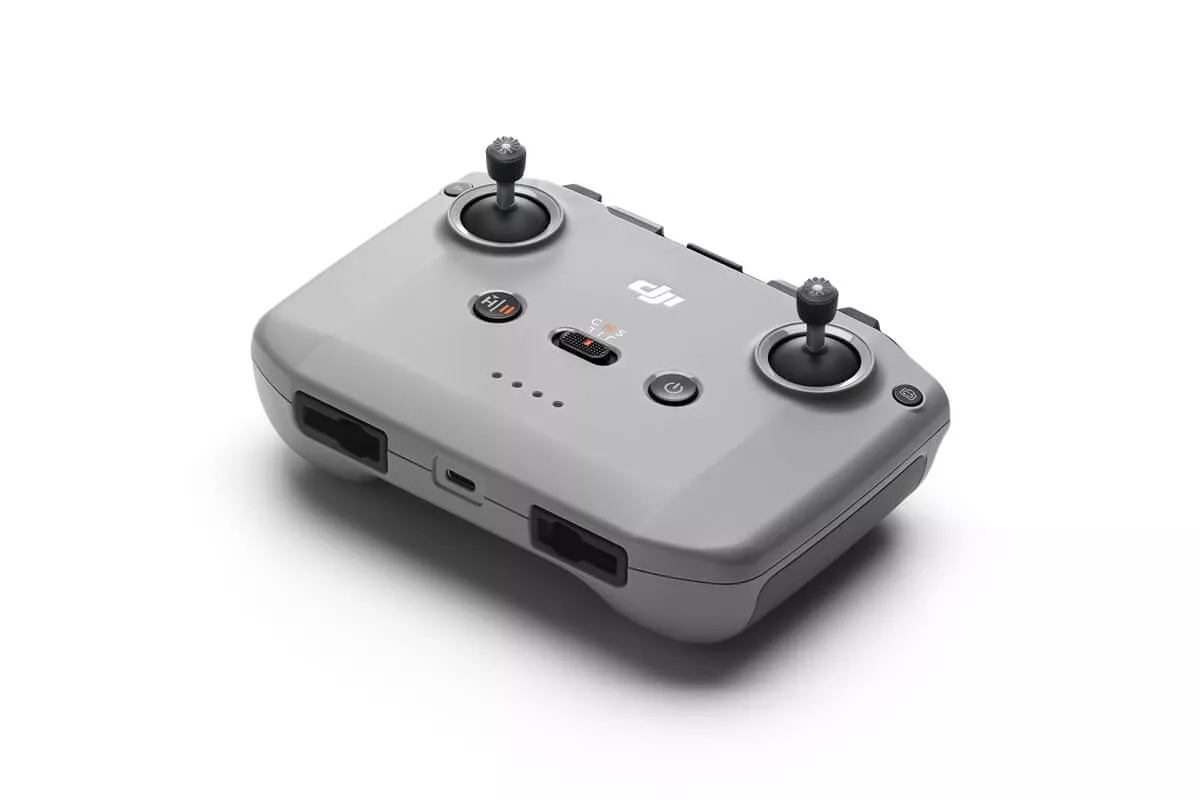

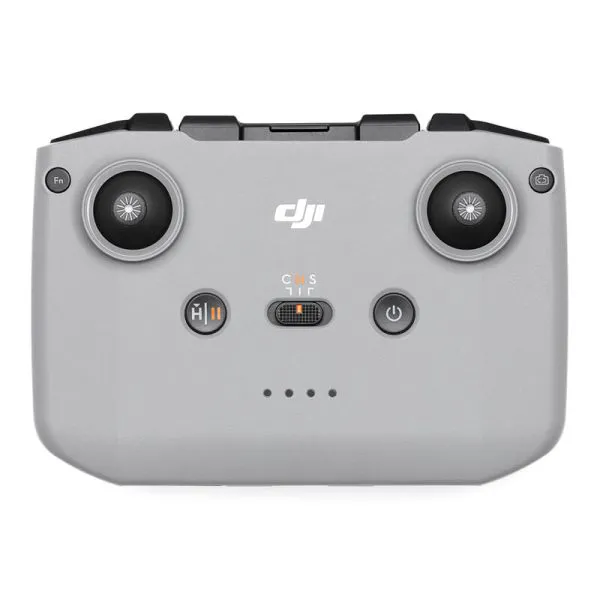

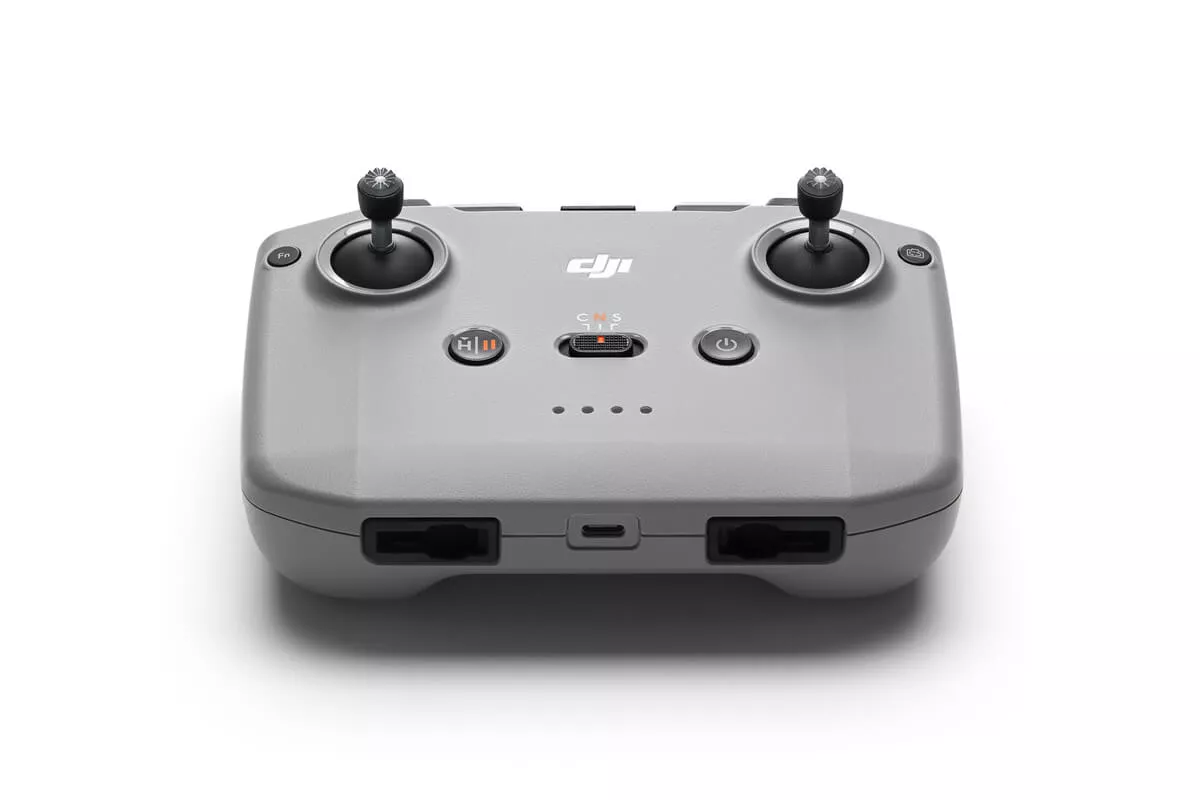

שלט DJI RC-N3

Video Transmission

• Video Transmission System

• DJI RC adopts OcuSync HD video transmission technology. When connected to other compatible drone models, DJI RC will switch to the corresponding video transmission technology.
  With different aircraft hardware, the corresponding video transmission specifications are as follows:
  DJI Mini 3 Pro: O3
  DJI Mavic 3 Classic: O3+
  DJI Mavic 3: O3+
  DJI Mavic 3 Cine: O3+
  DJI Air 2S: O3

• Max. Transmission Distance (unobstructed, free of interference)

• DJI Mini 3 Pro: 12 km (FCC); 8 km (CE/SRRC/MIC)
  DJI Mavic 3 Classic: 15 km (FCC); 8 km (CE/SRRC/MIC)
  DJI Mavic 3: 15 km (FCC); 8 km (CE/SRRC/MIC)
  DJI Mavic 3 Cine: 15 km (FCC); 8 km (CE/SRRC/MIC)
  DJI Air 2S: 12 km (FCC); 8 km (CE/SRRC/MIC)

• Operating Frequency*

• 2.400-2.4835 GHz; 5.725-5.850 GHz

• Antennas

• 2 antennas, 1T2R

• Transmitter Power (EIRP)

• 2.400-2.4835 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)

Wi-Fi

• Protocol

• 802.11 a/b/g/n

• Operating Frequency*

• 2.400-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz

• Transmitter Power (EIRP)

• 2.400-2.4835 GHz: <23 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  5.150-5.250 GHz: <23 dBm (FCC/CE/SRRC/MIC)
  5.725-5.850 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE)

Bluetooth

• Protocol

• Bluetooth 4.2

• Operating Frequency

• 2.400-2.4835 GHz

• Transmitter Power (EIRP)

• < 10 dBm

Screen

• Resolution

• 1920×1080

• Size

• 5.5 inches

• Frame Rate

• 60fps

• Brightness

• 700 nits

• Touch Control

• 10-point multi-touch

General Specs

• Battery

• Li-ion (5,200 mAh @ 3.6 V)

• Charging Type

• It is recommended to use a charger rated 5 V/2 A or above.

• Rated Power

• 4.5 W

• Storage Capacity

• Expandable (with microSD card)

• Charging Time

• 1.5 hours (with 5 V/3 A charger)

• Operating Time

• 4 hours

• Video Output Port

• N/A

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Storage Temperature

• Within one month: -30° to 60° C (-22° to 140° F)
  One to three months: -30° to 45° C (-22° to 113° F)
  Three to six months: -30° to 35° C (-22° to 95° F)
  More than six months: -30° to 25° C (-22° to 77° F)

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Supported Aircraft Models**

• DJI Mini 3 Pro
  DJI Air 2S
  DJI Mavic 3 Classic
  DJI Mavic 3
  DJI Mavic 3 Cine

• GNSS

• GPS + BeiDou + Galileo

• Dimensions (L×W×H)

• Without control sticks: 168.4×123.7×46.2 mm
  With control sticks: 168.4×123.7×62.7 mm

• Weight

• Approx. 390 g

• Model

• RM330

Storage

• Supported SD Cards

• UHS-I Speed Grade 3 rating microSD card or above

• Recommended microSD Cards

• SanDisk Extreme PRO 64GB V30 A2 microSDXC
  SanDisk High Endurance 64GB V30 microSDXC
  SanDisk Extreme 128GB V30 A2 microSDXC
  SanDisk Extreme 256GB V30 A2 microSDXC
  SanDisk Extreme 512GB V30 A2 microSDXC
  Lexar 667x 64GB V30 A2 microSDXC
  Lexar High-Endurance 64GB V30 microSDXC
  Lexar High-Endurance 128GB V30 microSDXC
  Lexar 667x 256GB V30 A2 microSDXC
  Lexar 512GB V30 A2 microSDXC
  Samsung EVO 64GB V30 microSDXC
  Samsung EVO Plus 128GB V30 microSDXC
  Samsung EVO Plus 256GB V30 microSDXC
  Samsung EVO Plus 512GB V30 microSDXC
  Kingston 128GB V30 microSDXC
