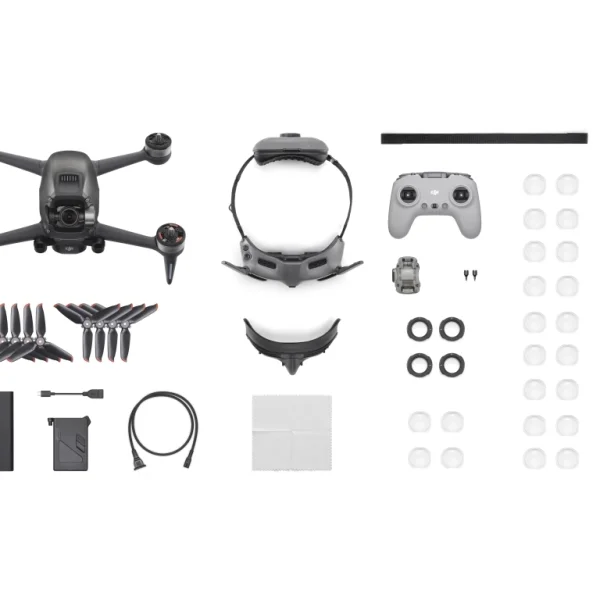

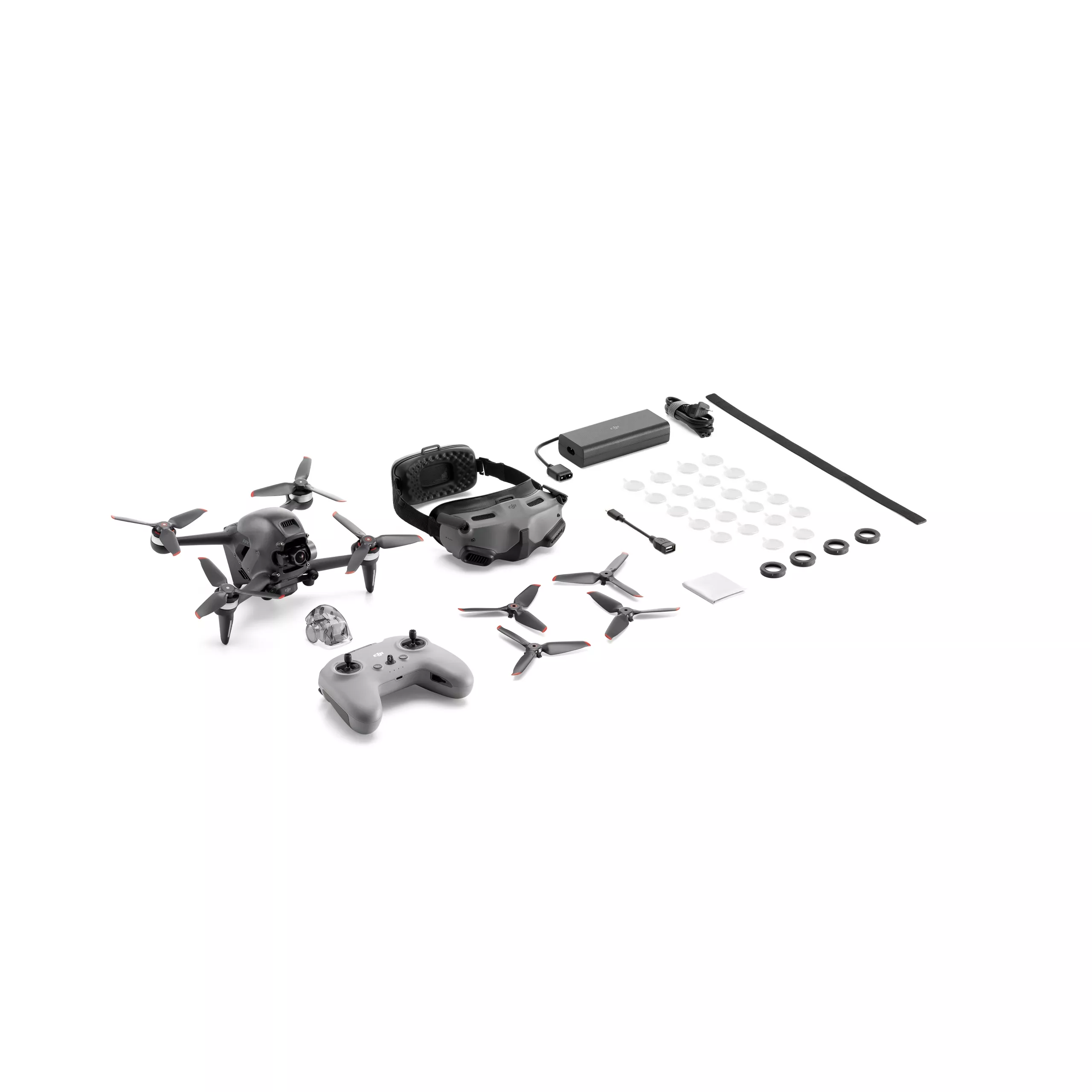

DJI FPV EXPLORER

תהנו מהנוחות של DJI Goggles Integra החדשות. כעת קטן יותר, קל יותר ומצויד בתצוגות Micro-OLED כדי לתת לכם ראייה צלולה בעת הטסה.

חיישן

• 1/2.3” CMOS Effective pixels: 12 million

עדשה

• FOV: 150° 35mm Format Equivalent: 14.66 mm Aperture: f/2.8 Focus Mode: Fixed Focus Focus Range: 0.6 m to ∞

ISO

• 100-12800

מהירות צמצם

• 1/50-1/8000 s

גודל תמונה מקסימלי

• 3840×2160

רזולוציית וידאו

• 4K: 3840×2160 at 50/60fps FHD: 1920×1080 at 50/60/100/120fps

Max Video Bitrate

• 120 Mbps

Color Profile

• Standard, D-Cinelike

RockSteady EIS

• Available

Distortion Correction

• Available

Supported File Formats

• exFAT (recommended) FAT32

גימבל

Mechanical Range

• Tilt: -65° to 70°

Controllable Range

• Tilt: -50° to 58°

Stabilization

• Single-axis (tilt), electronic roll axis

Max Control Speed

• 60°/s

Angular Vibration Range

• ±0.01° (N mode)

Electronic Roll Axis

• Available (can stabilize footage when the aircraft is tilted at angles of up to 10°)

Aircraft

Takeoff Weight

• Approx. 795 g

Dimensions

• 255×312×127 mm (with propellers) 178×232×127 mm (without propellers)

Diagonal Distance

• 245 mm

Max Ascent Speed

• M mode: No limit S mode: 15 m/s N mode: 8 m/s

Max Descent Speed

• M mode: No limit S mode: 10 m/s N mode: 5 m/s

Max Speed

• 140 kph; M mode: 39 m/s (27 m/s in Mainland China) S mode: 27 m/s N mode: 15 m/s

Max Acceleration

• 0-100 kph: 2 s (in ideal conditions while flying in M mode)

Max Service Ceiling Above Sea Level

• 6,000 m

Max Flight Time

• Approx. 20 mins (measured while flying at 40 kph in windless conditions)

Max Hover Time

• Approx. 16 mins (measured when flying in windless conditions)

Max Flight Distance

• 16.8 km (measured while flying in windless conditions)

Max Wind Speed Resistance

• 39-49 kph (25-31 mph)

Operating Temperature

• -10° to 40° C (14° to 104° F)

Transmitter Power (EIRP)

• 2.400-2.4835 GHz FCC: ≤ 31.5dBm CE: ≤ 20 dBm SRRC: ≤ 20 dBm MIC: ≤ 20 dBm5.725-5.850 Ghz FCC: ≤ 31.5 dBm CE: ≤ 14 dBm SRRC: ≤ 25.5 dBm

Number of Antennas

• Four

GNSS

• GPS GLONASS GALILEO

Hovering Accuracy Range

• Vertical: ±0.1 m (with Vision Positioning) ±0.5 m (with GPS positioning)Horizontal: ±0.3 m (with Vision Positioning) ±1.5 m (with GPS positioning)

Supported SD Cards

• microSD (up to 256 GB)

Internal Storage

• N/A

Sensing System

Forward

• Precision Measurement Range: 0.5-18 m Obstacle Sensing: Available in N mode only FOV: 56° (horizontal), 71° (vertical)

Downward (dual vision sensors ToF)

• ToF Effective Sensing Height: 10 m Hovering Range: 0.5-15 m Vision Sensor Hovering Range: 0.5-30 m

Downward Auxillary Light

• Single LED

Operating Environment

• Refers to non-reflective, discernible surfaces Diffuse reflectivity >20% (e.g. walls, trees, people) Adequate lighting conditions (lux >15 in normal indoor lighting conditions)

Charger

Input

• 100-240 V, 50/60 Hz, 1.8 A

Output

• Battery charging interface: 25.2 V ± 0.1 V 3.57 A ± 0.1 A (high current) 1 A ± 0.2 A (low current)USB Port: 5V/2A (×2)

Rated Power

• 86 W

Intelligent Flight Battery

Battery Capacity

• 2000 mAh

Voltage

• 22.2 V

Max Charging Voltage

• 25.2 V

Battery Type

• LiPo 6S

Energy

• 44.4 Wh@0.5C

Discharge Rate

• Standard: 10C

Weight

• 295 g

Charging Temperature

• 5° to 40° C (41° to 104° F)

Max Charging Power

• 90 W

Video Transmission

Operating Frequency

• 2.400-2.4835 GHz 5.725-5.850 GHz

Communication Bandwidth

• 40 MHz (Max.)

Live View Mode

• Low-Latency Mode: 810p/120fps ≤ 28ms High-Quality Mode: 810p/60fps ≤ 40ms

Max Video Bitrate

• 50 Mbps

Transmission Range

• 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

Audio Transmission Support

• Yes

DJI FPV Remote Controller

Operating Frequency

• 2.400-2.4835 GHz 5.725-5.850 GHz

Transmitter Power (EIRP)

• 2.400-2.4835 GHz FCC: ≤ 28.5 dBm CE: ≤ 20 dBm SRRC: ≤ 20 dBm MIC: ≤ 20 dBm5.725-5.850 GHz FCC: ≤ 31.5 dBm CE: ≤ 14 dBm SRRC: ≤ 19 dBm

Max. Transmission Distance

• 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

Gimbal Dimensions

• 190×140×51 mm

Weight

• 346 g

Battery Life

• Approx. 9 hours

Charging Time

• 2.5 hours

Motion Controller

Model

• FC7BMC

Weight

• 167 g

Operating Frequency Range

• 2.400-2.4835 GHz; 5.725-5.850 GHz

Max Transmission Distance (unobstructed, free of interference)

• 10 km (FCC), 6 km (CE/SRRC/MIC)

Transmitter Power (EIRP)

• 2.4 GHz: ≤28.5 dBm (FCC), ≤20 dBm (CE/ SRRC/MIC) 5.8 GHz: ≤31.5 dBm (FCC), ≤19 dBm (SRRC), ≤14 dBm (CE)

Operating Temperature Range

• -10° to 40° C (14° to 104° F)

Battery Life

• 300 minutes

microSD card

Supported microSD cards

• Max 256 GBUHS-I Speed Grade 3

Recommended microSD cards

• SanDisk High Endurance U3 V30 64GB microSDXC SanDisk Extreme PRO U3 V30 A2 64GB microSDXC SanDisk Extreme U3 V30 A2 64GB microSDXC SanDisk Extreme U3 V30 A2 128GB microSDXC SanDisk Extreme U3 V30 A2 256GB microSDXC Lexar 667x V30 128GB microSDXC Lexar High Endurance 128GB U3 V30 microSDXC Samsung EVO U3 (Yellow) 64GB microSDXC Samsung EVO Plus U3 (Red) 64GB microSDXC Samsung EVO Plus U3 256GB microSDXC Netac 256GB U3 A1 microSDXC
